English

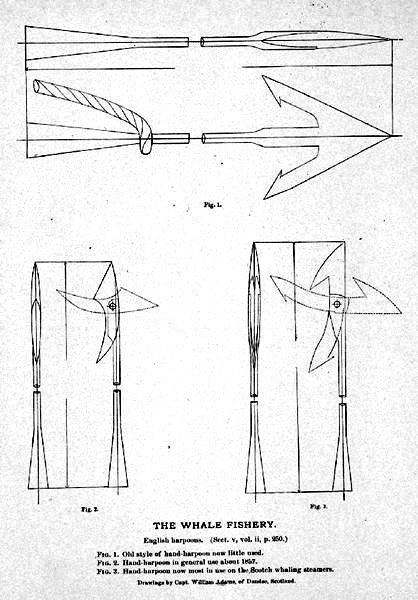

harpoons. Fig. 1. Old, original style harpoon, Fig. 2. Hand
harpoon in general use about 1857, Fig. 3. Hand-harpoon in
general use on Scotch whalers. Drawings by Capt. William Adams,
Dundee, Scotland.
The purpose of the hand harpoon was not to kill
the whale, but to weaken it and allow the whalers to move in for
the kill. A much-used refinement of this technique for much of the
pre-industrial era of whaling was that the harpoon was used to
fasten the whaling boat to the whale. As the whale swam off in a
panic, it was forced to drag the whaling boat behind it, making it
harder for it to dive and tiring the whale more effectively.
Initially harpoons were like simple large arrow
shapes with barbs as in the first picture, though these frequently
came out of the whale which then stood a better chance of escape.
Later, very successful refinements of this were the harpoons with
toggle heads that penetrated the whale easily, but then swivelled
through 90° so holding them fast much more effectively.
Harpoons were made of soft iron and would bend
easily when struck in the whale, this would make them more difficult
to remove and so they were less likely to come out than if they were
made of stiffer steel.
Image courtesy NOAA
